Litetouch® Fittings

• High pressure with fingertight convenience
• Helps prevent twisting of polymer tubing
• For 1/32", 1/16" and 1/8" OD tubing

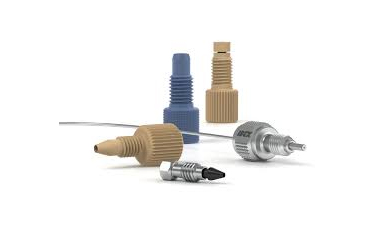

LiteTouch® Connector







When connecting 1/32" or 1/16" OD tubing into a 10-32 conical receiving port or 1/8" OD tubing into a 1/4-28 conical receiving port, an excellent choice for making these connections is the Upchurch Scientific® LiteTouch Fittings System. This system grips at two compression points (see diagram), holding to high pressures with Fingertight convenience. However, it also helps prevent polymer tubing from twisting during the tightening process, a potential problem when using standard Fingertight fittings. As an added advantage, through the use of the stainless stee lock ring, the LiteTouch ferrules stay in place on the tubing when the fitting system is loosened from its receiving port.
