Refractor2™ Grazing Angle Accessory

Brand

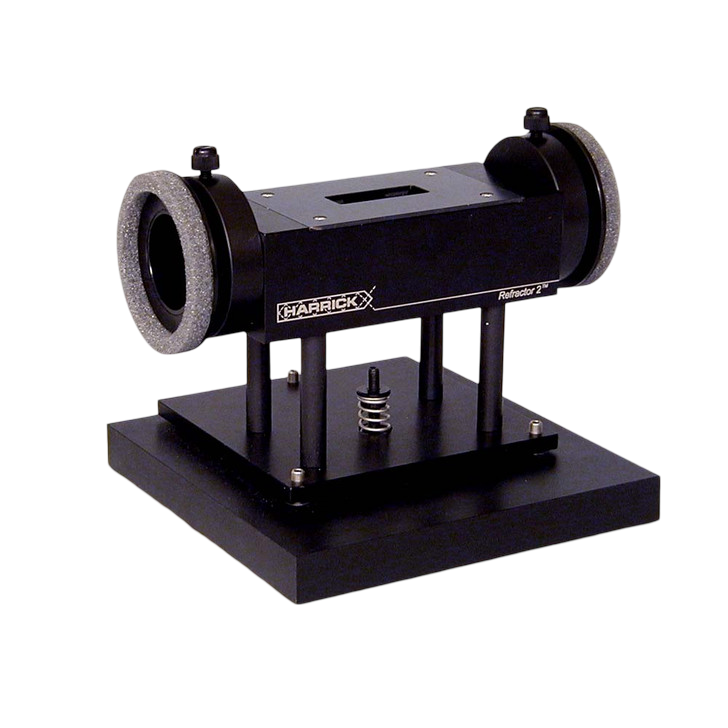

The Refractor2™ is a unique attachment for grazing angle Specular Reflectance spectroscopy. The Refractor2™ incorporates two SuperCharged™ wedged windows to refract the beam to and from the sample. It also includes a pre-mounted, internal Si polarizer for enhanced spectral contrast. The unique design of the Refractor2™ results in a compact FT-IR accessory that avoids the energy losses associated with the plane mirrors typically employed. The Refractor2™ is ideal for recording infrared spectra of thin films on metals and thin coatings on semiconductors. It is well suited for QC and laboratory FT-IR spectroscopy

Features

Includes

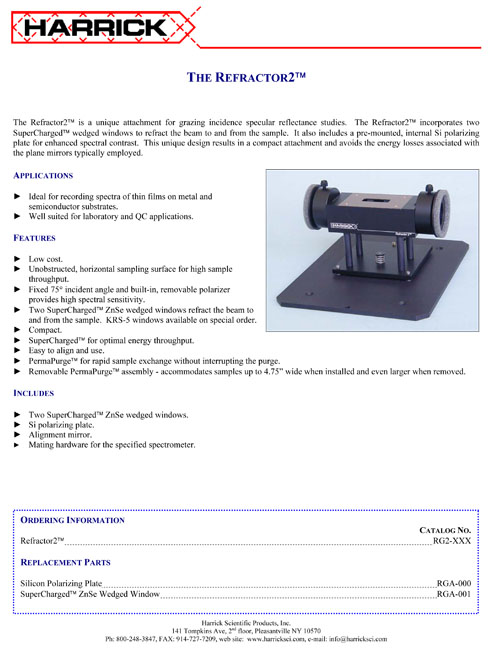

Technical Info

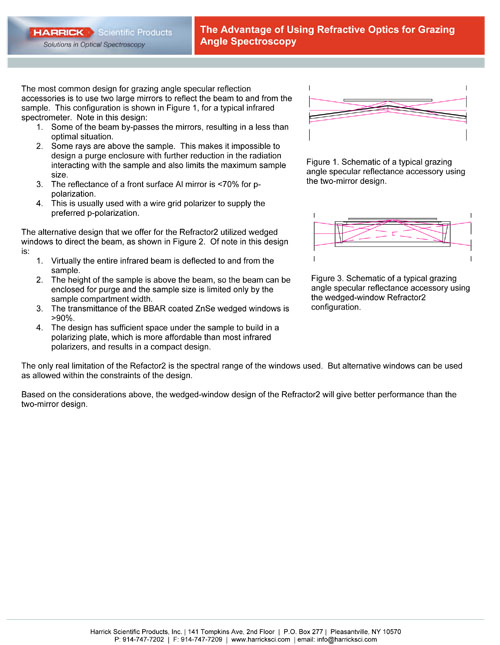

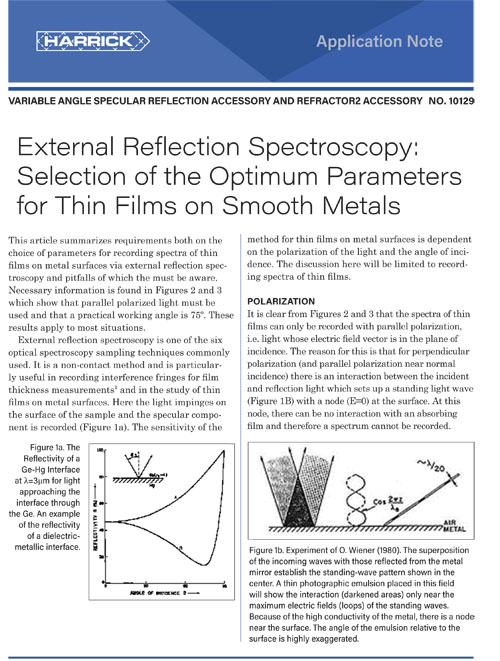

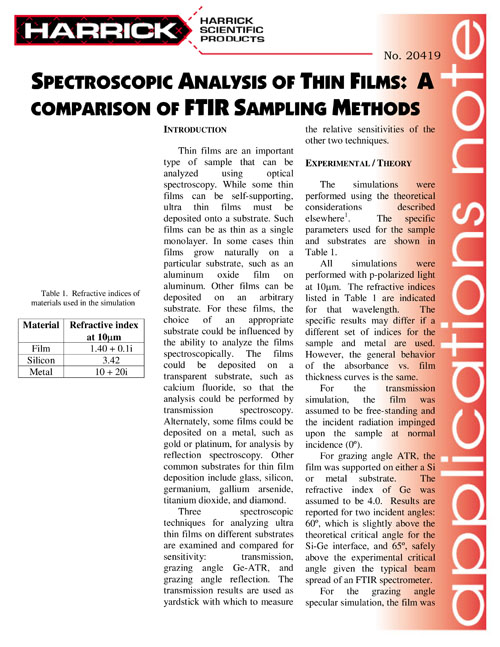

Refractor2™ Grazing Angle Accessory Application Notes

Low cost.

Unobstructed, horizontal sampling surface for high sample throughput.

Fixed 75° incident angle and built-in, removable polarizer provides high spectral sensitivity for grazing angle spectroscopy.

Two SuperCharged™ ZnSe wedged windows refract the beam to and from the sample. KRS-5 windows available on special order.

Compact.

SuperCharged™ for optimal energy throughput.

Easy to align and use.

Recommended minimum sample size: 1.5" x 0.6".
